Packages
Package	Description
hex	Shared code between the H2O runtime and generated POJO models.
hex.genmodel	Low-level information about generated POJO models.
hex.genmodel.algos
hex.genmodel.annotations
hex.genmodel.easy	The easy prediction API for generated POJO models.
hex.genmodel.easy.exception	Exceptions that can be raised by generated POJO models.
hex.genmodel.easy.prediction	Prediction types that can be returned by generated POJO models.
hex.genmodel.tools	Tools that use generated POJO models.
hex.genmodel.utils
water.genmodel	Deprecated (see hex.genmodel instead).
water.util	Deprecated (see hex.util instead).

This document describes how to use H2O's generated MOJO and POJO models.

About generated models

H2O-generated MOJO and POJO models are intended to be easily embeddable in any Java environment. The only compilation and runtime dependency for a generated model is the h2o-genmodel.jar file produced as the build output of this package.

There are subtle differences between POJOs and MOJOs especially in the main.java file and in specifying the model output. If you are just getting started, refer to the Quick start sections for MOJOs and POJOs first, then look at the documentation for the hex.genmodel.easy package.

The following topics are covered here:

MOJOs

What is a MOJO?
MOJO Quick Start

What is a POJO?

H2O allows you to convert the models you have built to a Plain Old Java Object (POJO). POJOs allow users to build a model using H2O and then deploy the model to score in real-time.

POJO Quick start

Step 1 (in terminal window 1): Start H2O

$ java -jar h2o.jar

Step 2 (in a web browser): Build model

Go to http://localhost:54321
Click "view example Flows" near the right edge of the screen. Refer to the following screenshot:

Click "GBM_Airlines_Classification.flow"
If a confirmation prompt appears, click "Load Notebook"
From the "Flow" menu, choose "Run all cells"

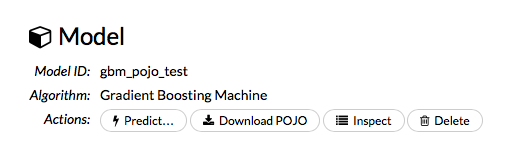

Scroll down and find the "Model" cell in the notebook. Click the Download POJO button (shown in the following screenshot):

NOTE: The instructions below assume the POJO model was downloaded to the "Downloads" folder.

Step 3 (in a new terminal window - H2O must still be running in the first terminal window): Download model pieces

$ mkdir experiment
$ cd experiment
$ mv ~/Downloads/gbm_pojo_test.java .
$ curl http://localhost:54321/3/h2o-genmodel.jar > h2o-genmodel.jar

Step 4 (in terminal window 2): Create the main program

Create a new file called main.java (for example, using vim main.java) with the following contents. Note that the modelClassName must match the downloaded model name.

import java.io.*;
import hex.genmodel.easy.RowData;
import hex.genmodel.easy.EasyPredictModelWrapper;
import hex.genmodel.easy.prediction.*;

public class main {
  private static String modelClassName = "gbm_pojo_test";

  public static void main(String[] args) throws Exception {
    hex.genmodel.GenModel rawModel;
    rawModel = (hex.genmodel.GenModel) Class.forName(modelClassName).newInstance();
    EasyPredictModelWrapper model = new EasyPredictModelWrapper(rawModel);
    //
    // By default, unknown categorical levels throw PredictUnknownCategoricalLevelException.
    // Optionally configure the wrapper to treat unknown categorical levels as N/A instead:
    //
    //     EasyPredictModelWrapper model = new EasyPredictModelWrapper(
    //                                         new EasyPredictModelWrapper.Config()
    //                                             .setModel(rawModel)
    //                                             .setConvertUnknownCategoricalLevelsToNa(true));

    RowData row = new RowData();
     row.put("Year", "1987");
     row.put("Month", "10");
     row.put("DayofMonth", "14");
     row.put("DayOfWeek", "3");
     row.put("CRSDepTime", "730");
     row.put("UniqueCarrier", "PS");
     row.put("Origin", "SAN");
     row.put("Dest", "SFO");

    BinomialModelPrediction p = model.predictBinomial(row);
    System.out.println("Label (aka prediction) is flight departure delayed: " + p.label);
    System.out.print("Class probabilities: ");
    for (int i = 0; i < p.classProbabilities.length; i++) {
      if (i > 0) {
        System.out.print(",");
      }
      System.out.print(p.classProbabilities[i]);
    }
    System.out.println("");
  }
}

Step 5 (in terminal window 2): Compile and Run

$ javac -cp h2o-genmodel.jar -J-Xmx2g -J-XX:MaxPermSize=128m gbm_pojo_test.java main.java
$ java -cp .:h2o-genmodel.jar main

The following output displays:

        Label (aka prediction) is flight departure delayed: YES
        Class probabilities: 0.4790490513429604,0.5209509486570396

Appendix: PDF of the Flow that built this model

Extracting generated models from H2O

Generated models can be extracted from H2O in the following ways:

From the H2O Flow Web UI:

When viewing a model, click the "Download POJO" button at the top of the model cell (refer to the example in the "Quick Start" section). You can also preview the POJO inside Flow, but it will only show the first 1000 lines or so in the web browser, truncating large models.

From R:

The following code snippet represents an example of H2O building a model and downloading its corresponding POJO from an R script:

library(h2o)
h2o.init()
path = system.file("extdata", "prostate.csv", package = "h2o")
h2o_df = h2o.importFile(path)
h2o_df$CAPSULE = as.factor(h2o_df$CAPSULE)
model = h2o.glm(y = "CAPSULE",
                x = c("AGE", "RACE", "PSA", "GLEASON"),
                training_frame = h2o_df,
                family = "binomial")
h2o.download_pojo(model)

From Python:

The following code snippet represents an example of H2O building a model and downloading its corresponding POJO from a Python script:

import h2o
h2o.init()
path = h2o.system_file("prostate.csv")
h2o_df = h2o.import_file(path)
h2o_df['CAPSULE'] = h2o_df['CAPSULE'].asfactor()
model = h2o.glm(y = "CAPSULE",
                x = ["AGE", "RACE", "PSA", "GLEASON"],
                training_frame = h2o_df,
                family = "binomial")
h2o.download_pojo(model)

From Java:

TODO: provide pointer of doing this directly from Java

From Sparkling Water:

The following code snippet represents an example of H2O building a model and downloading its corresponding POJO from a Sparkling water script:

import org.apache.spark.h2o._
val h2oContext = H2OContext.getOrCreate(sc)

import h2oContext._
import org.apache.spark.examples.h2o._
import java.io.File
val dataFile = "examples/smalldata/allyears2k_headers.csv.gz"
val airlinesData = new H2OFrame(new File(dataFile))

import _root_.hex.tree.gbm.GBM
import _root_.hex.tree.gbm.GBMModel.GBMParameters
val gbmParams = new GBMParameters()
  gbmParams._train = airlinesData
  gbmParams._response_column = 'IsDepDelayed
  gbmParams._model_id = water.Key.make("model")
  gbmParams._ntrees = 5
  gbmParams._max_depth = 2

val gbm = new GBM(gbmParams)
val model = gbm.trainModel.get

import water._
import _root_.hex._
import java.net.URI
import water.serial.ObjectTreeBinarySerializer

def exportPOJOModel(model : Model[_, _,_], destination: URI): URI = {
    val destFile = new File(destination)
    val fos = new java.io.FileOutputStream(destFile)
    val writer = new model.JavaModelStreamWriter(false)
    try {
      writer.writeTo(fos)
    } finally {
      fos.close()
    }
    destination
}
exportPOJOModel(model, new File("./GbmModel.java").toURI)

Use cases

The following use cases are demonstrated with code examples:

Reading new data from a CSV file and predicting on it

The PredictCsv class is used by the H2O test harness to make predictions on new data points.

Getting a new observation from a JSON request and returning a prediction

See the Consumer loan application github repository.

A user-defined-function called directly from hive

See the H2O World 2015 Training github repository.

What is a MOJO?

A MOJO (Model Object, Optimized) is an alternative to H2O's currently available POJO. As with POJOs, H2O allows you to convert models that you build to MOJOs, which can then be deployed for scoring in real time.

Note: MOJOs are supported for DRF and GBM algorithms only.

Benefit of MOJOs over POJOs

While POJOs continue to be supported, some customers encountered issues with large POJOs not compiling. (Note that POJOs are not supported for source files larger than 1G.) MOJOs do not have a size restriction and address the size issue by taking the tree out of the POJO and using generic tree-walker code to navigate the model. The resulting executable is much smaller and faster than a POJO.

At large scale, new models are roughly 20-25 times smaller in disk space, 2-3 times faster during "hot" scoring, and 10-40 times faster in "cold" scoring compared to POJOs. These efficiency gains are larger the bigger the size of the model.

H2O conducted in-house testing using models with 5000 trees of depth 25. At very small scale (50 trees / 5 depth), POJOs were found to perform approximately 10% faster than MOJOs for binomial and regression models, but 50% slower than MOJOs for multinomial models.

MOJO Quick start

MOJOs are built in much the same way as POJOs. The example code below shows how to start H2O and then build a model using either R or Python.

Step 1: Start H2O, then build and extract the model

The examples below describe how to create a model using R and Python. The download_mojo() function saves the model as a zip file. You can unzip the file to view the options used to build the file along with each tree built in the model. Note that each tree file is saved as a binary file type.

Build and extract a model using R

MOJOs are only supported for GBM and DRF models.

Open a terminal window and start r.

Run the following commands to build a simple GBM model.

        library(h2o)
        h2o.init(nthreads=-1)
        path = system.file("extdata", "prostate.csv", package="h2o")
        h2o_df = h2o.importFile(path)
        h2o_df$RACE = as.factor(h2o_df$RACE)
        model = h2o.gbm(y="CAPSULE",
                        x=c("AGE", "RACE", "PSA", "GLEASON"),
                        training_frame=h2o_df,
                        distribution="bernoulli",
                        ntrees=100,
                        max_depth=4,
                        learn_rate=0.1)

Download the MOJO and the resulting h2o-genmodel.jar file to a new **experiment** folder.

modelfile = model.download_mojo(path="~/experiment/", get_genmodel_jar=True)
                print("Model saved to " + modelfile)
                Model saved to /Users/user/GBM_model_R_1475248925871_74.zip"

Build and extract a model using Python

Open a new terminal window and start python.
